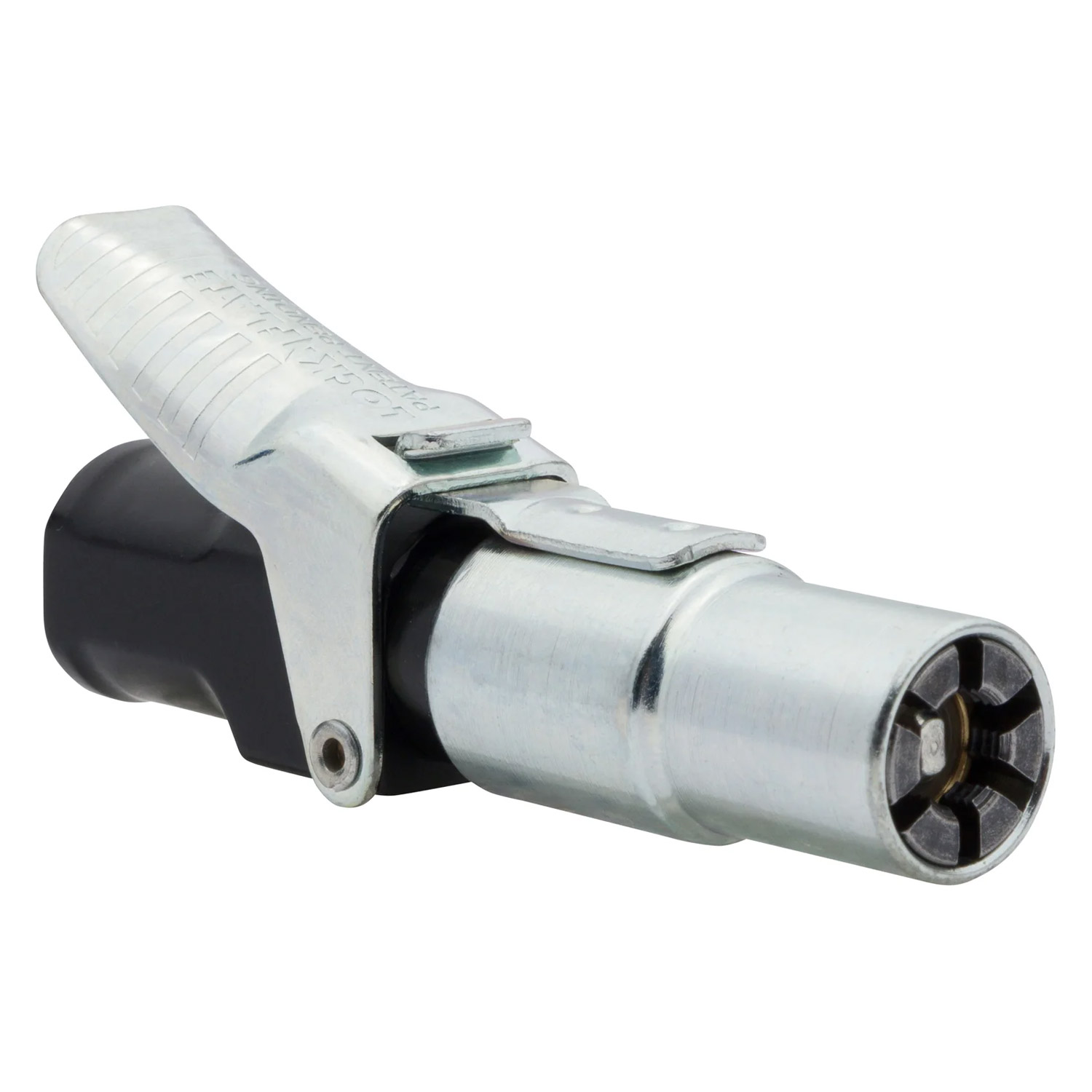

LNF Air Chuck Kit – Open & Closed Flow

Description

Applications:

• Tire inflation in automotive and fleet shops
• Service bays and garages
• Portable and shop air systems
• Multi-tire inflation setups

Features & Benefits:

• Six steel jaws lock onto any Schrader valve for a secure connection
• Hands-free operation once attached
• Straight design for easy access on standard valve stems
• 1/4 inch NPT connection fits most air hoses
• Rated up to 150 PSI
• Heavy-duty construction for daily shop use
• Spring-loaded TPU seal allows use with or without valve core
• Won’t leak once locked in place

Kit Includes:

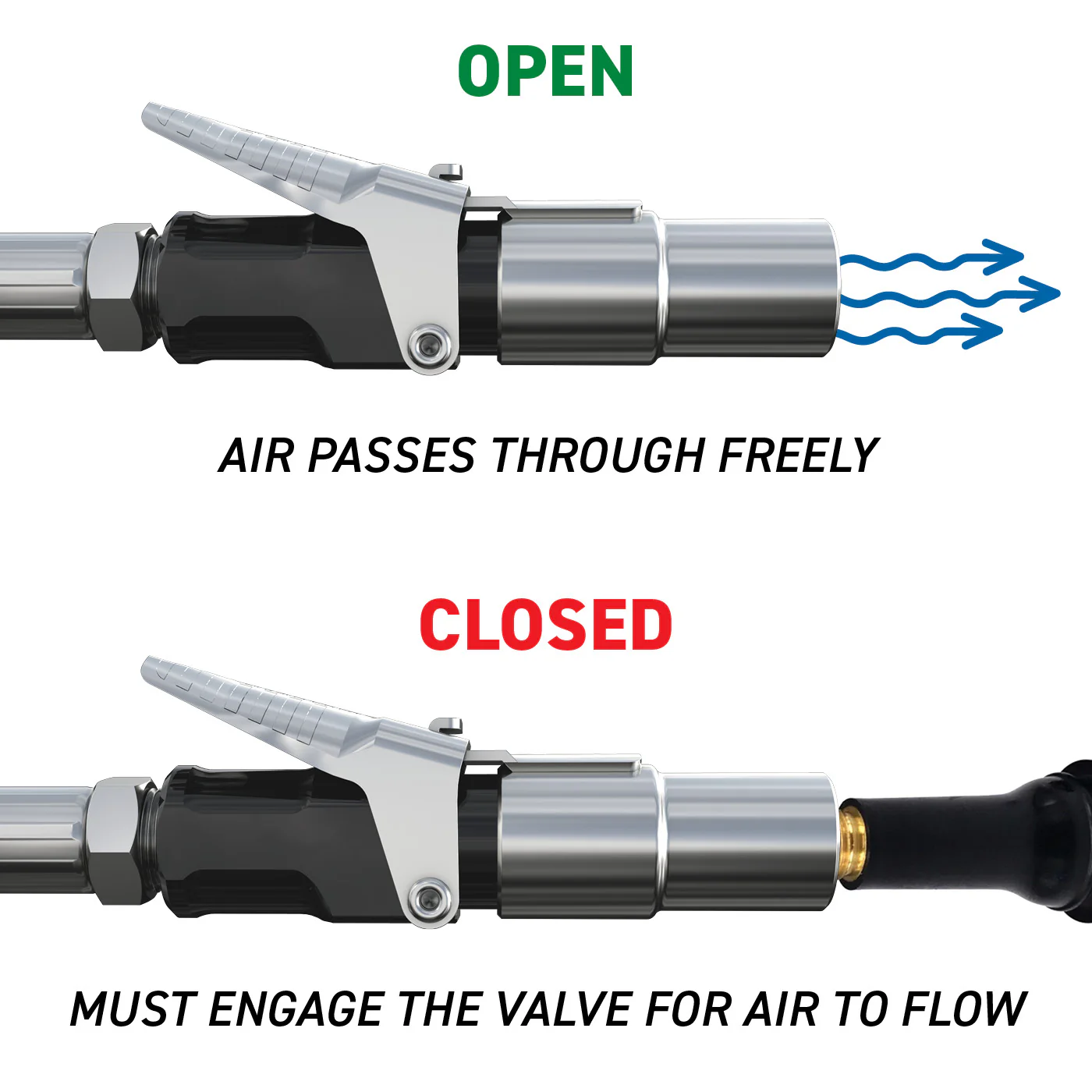

LNL65001 – Open Flow:

• Air flows freely with or without connection to valve
• Ideal for inflator gauges and automatic systems
• Recommended for portable inflators (Milwaukee, DeWalt, etc.) with adapter

LNL65002 – Closed Flow:

• Air flows only when connected to valve stem
• Ideal for direct compressor or air hose use
• Best for multi-hose inflation systems

Specifications:

• Connection: 1/4 inch NPT
• Valve compatibility: Standard Schrader valves
• Max pressure: 150 PSI
• Construction: Hardened steel collet with durable housing
